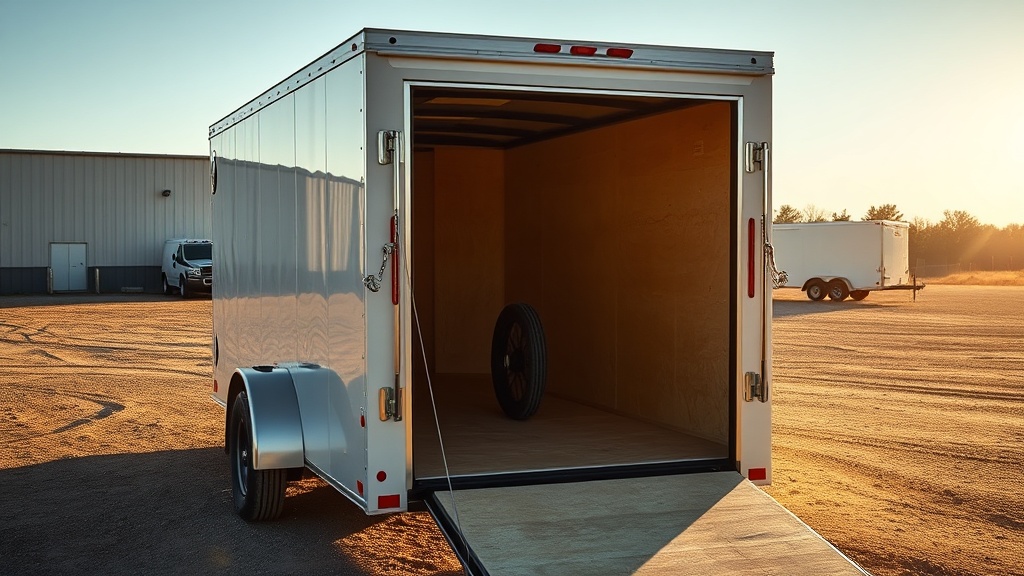

Why Do Pennsylvania Cargo 6×12 Ramp Door Hinges Fail?
Owners of Pennsylvania Cargo 6×12 trailers often notice the ramp door hinges wearing out after repeated use, especially under heavy motorcycle or ATV loads. The hinges—typically stamped steel with a zinc coating—can corrode, bend, or crack at the pivot point, leading to misalignment and difficulty closing the door. This guide focuses on troubleshooting and upkeep, helping you identify and replace faulty hinges without replacing the entire door assembly.
Replacing a ramp door hinge on a Pennsylvania Cargo 6×12 is a straightforward job for a DIY owner, but choosing the right replacement and performing the installation correctly matters. Hinges that are too light or improperly fastened can fail again within months, risking damage to your trailer and cargo. We’ll cover the specific hinge types, tools needed, and step-by-step replacement procedures to restore full functionality.
What Tools and Parts Do I Need for a Ramp Door Hinge Replacement?
Before starting, gather the correct replacement hinge and tools. The original hinges on most Pennsylvania Cargo 6×12 trailers are 4-inch heavy-duty strap hinges with a 5/16-inch pin and 1/2-inch mounting holes. Avoid universal hinges from big-box stores—they often have thinner steel and smaller holes that strip under load.
Required Tools
- Socket wrench set (3/8-inch drive) with 9/16-inch and 1/2-inch sockets
- Torx T-30 bit (if the hinge bolts have star-drive heads)
- Penetrating oil (e.g., WD-40 or PB Blaster)
- Flathead screwdriver or small pry bar
- Center punch and hammer
- Replacement hinge bolts: Grade 8, 1/2-inch by 1-1/4-inch hex bolts with nylon lock nuts
- Zinc-plated or stainless steel replacement hinge (4-inch heavy-duty strap type)
Replacement Hinge Specifications
We recommend using a hinge with a 1/4-inch thick leaf (original is 3/16-inch), a 5/8-inch diameter pin, and a 180-degree opening angle. Stainless steel hinges cost around $18–$25 per pair, while heavy-duty galvanized versions run $12–$16 per pair. Avoid cheap painted hinges—they chip and rust within one season in Pennsylvania’s climate.
How Do I Diagnose a Faulty Ramp Door Hinge?
Listen for a metallic grinding sound when raising the ramp door. Visually inspect the hinge for a gap between the door and the trailer frame when closed. A hinge that has sagged more than 1/8 inch will cause the door to bind at the latch. Use a straightedge along the door edge—if the gap exceeds 3/16 inch, the hinge is worn.

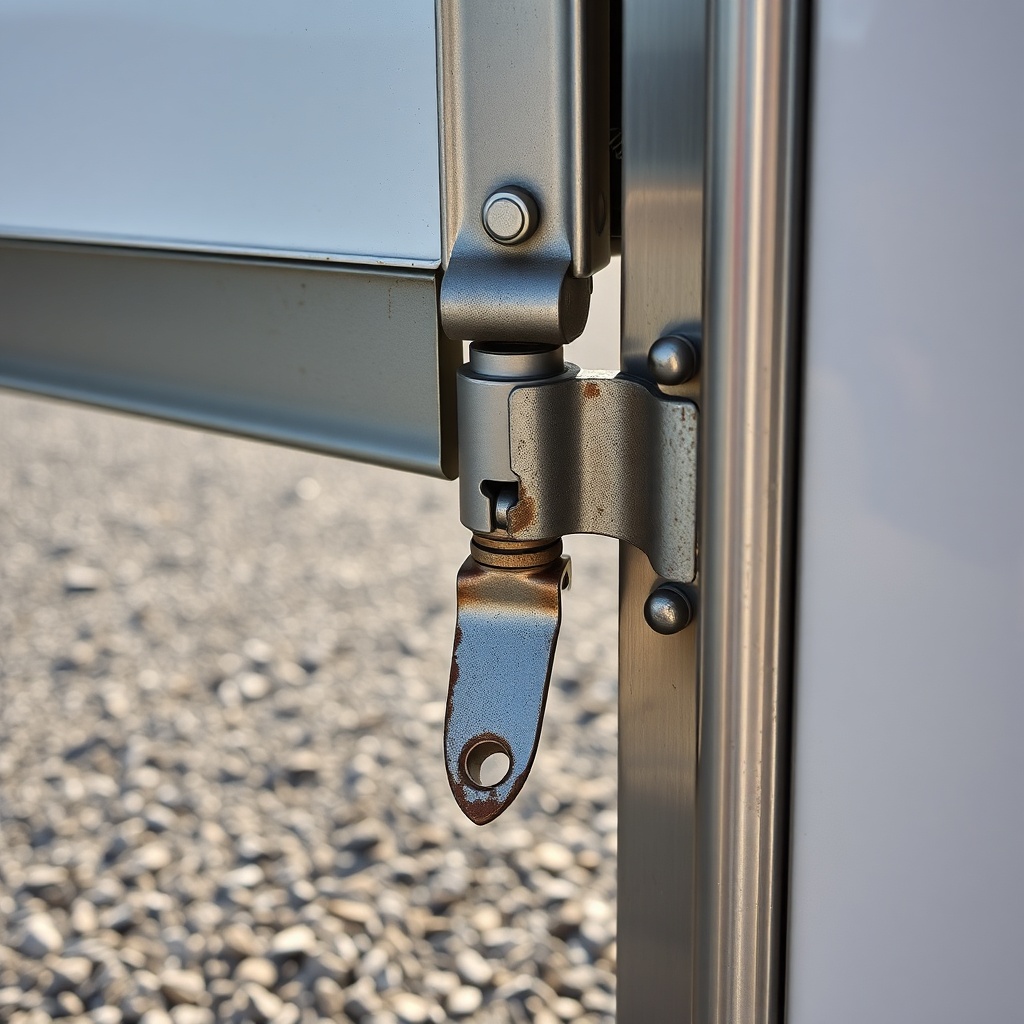

Another sign: the ramp door does not sit flush against the weather seal. This often means the hinge pin is egg-shaped or the leaf is bent. On a Pennsylvania Cargo 6×12, the lower hinge—closest to the ground—takes the most abuse from road salt and moisture. Check it first.
Step-by-Step: How to Replace a Pennsylvania Cargo 6×12 Ramp Door Hinge
Follow these steps carefully to avoid damaging the aluminum or steel door frame. Work with the ramp door fully lowered and supported on jack stands or blocks to relieve tension.
- Apply penetrating oil to both hinge bolts. Wait 10 minutes.
- Using a socket wrench, remove the four bolts from the hinge (two on the door side, two on the trailer frame side). If bolts are seized, use a Torx bit to break them loose.
- Tap the hinge pin out with a center punch and hammer, working from bottom to top.
- Lift the old hinge off and clean the mounting surface with a wire brush.
- Position the new hinge: the barrel should align with the previous mounting holes. Mark any new hole locations with a marker.
- Drill pilot holes with a 1/8-inch bit if needed, then fasten the hinge using new Grade 8 bolts and lock nuts. Torque to 25 ft-lbs—do not overtighten, which can strip the aluminum door frame.
- Test the door by raising and lowering it. It should swing freely without binding. Adjust shims under the hinge if the gap is uneven (use stainless steel washers).
For a complete visual breakdown, also reference our Pennsylvania Cargo 6×12 Frame Welding Review: Strength and Durability for advice on reinforcing hinge mounting points if the original welds are weak.
What Is the Hinge Replacement Severity and Cost?
| Issue | Severity | Estimated Repair Cost (USD) | DIY Difficulty |
|---|---|---|---|
| Rusted hinge pin (surface corrosion) | Mild | $10–$15 (penetrating oil + replacement pin) | Easy |
| Bent hinge leaf | Moderate | $20–$35 (new hinge + bolts) | Moderate |
| Cracked hinge weld at frame | Severe | $50–$80 (hinge + welding repair) | Hard (likely professional) |
| Broken hinge pin from overload | Severe | $25–$45 (hinge + reinforcement plate) | Moderate |
Note: Prices reflect typical parts availability in Pennsylvania in 2025. Labor adds $75–$150 per hour if you hire a shop. For severe weld issues, consult our Pennsylvania Cargo 6×12 Brake System Upgrade: From Electric to Hydraulic for context on structural repairs that professionals might bundle with hinge work.
What Do Owners Say About Pennsylvania Cargo 6×12 Hinge Durability?
Owner feedback on forums and trailer groups highlights a common pattern: the original hinges on 2018–2023 Pennsylvania Cargo 6×12 models tend to corrode after two to three winters, especially if stored outdoors. “My 2021 model had the bottom hinge pin snap off during a trip. Replaced both with stainless steel from a marine supplier—no issues since,” wrote a user from Erie, Pennsylvania.
Another owner in Pittsburgh noted: “The factory hinges are fine for light use, but if you haul a 1200-pound bike up the ramp every weekend, upgrade to a 5/8-inch pin hinge. It costs extra but saves you from replacing them again in a year.” Several owners reinforce the hinge mounting area with a backing plate, which also protects the aluminum floor from cracking. For flooring concerns, check our Pennsylvania Cargo 6×12 Floor Rust Prevention and Care advice.
How Can I Prevent Future Ramp Door Hinge Failure?
Prevention is simpler than replacement. Spray the hinges with a silicone-based lubricant every three months—avoid WD-40 as a long-term lubricant because it dries out. Apply a marine-grade grease to the hinge pin twice a year. During winter, wash the ramp area thoroughly to remove road salt. If you store the trailer in a damp environment, use a dehumidifier near the rear.
Another upgrade: install a backup hinge support bracket (around $20) that bolts into the door frame and distributes load away from the hinge itself. This is particularly recommended if you plan to Pennsylvania Cargo 6×12 Interior Customization for Motorcycle Hauling and add heavier tie-down points near the door.
Frequently Asked Questions
1. Can I use any 4-inch hinge for my Pennsylvania Cargo 6×12?
No. The mounting hole spacing on the original hinge is 3-1/2 inches center-to-center. Many generic 4-inch hinges have 3-inch spacing, which requires drilling new holes and risks damaging the door frame. Always measure before buying.
2. How long does a replacement hinge last?
With proper maintenance, a stainless steel hinge can last 8–10 years. Galvanized hinges typically last 4–6 years in Pennsylvania’s climate, assuming you wash off road salt regularly.
3. Does replacing the hinge void my Pennsylvania Cargo warranty?
The warranty covers factory defects but not wear items like hinges. Replacing with aftermarket parts does not void the structure warranty, but drilling new holes may void coverage for the door panel. Use existing holes whenever possible.
4. Why does my ramp door stick after hinge replacement?
Most likely the hinge is misaligned by 1/16 inch or more. Loosen the bolts, adjust the hinge position so the door closes without binding, then retighten to 25 ft-lbs. If it sticks at the latch, check the door edge for burrs.
5. Can I weld the hinge instead of bolting it?
Welding is not recommended for the ramp door because the aluminum frame can warp or crack. Bolting with Grade 8 hardware provides sufficient strength and allows future replacement. If the frame itself has cracked welds, see our welding review referenced above.
6. Where can I buy the exact replacement hinge for my Pennsylvania Cargo 6×12?
Trailer parts retailers like Redneck Trailer Supplies or Pennsylvania-based trailer dealers stock them. Online, look for “4-inch heavy-duty gate hinge” with 5/16-inch pin and 1/2-inch holes. Part number PT-411 for the galvanized version or SS-412 for stainless steel.
